Livestock Scales & Equipment (Cattle & Sheep)

Submit Scale Quote Request

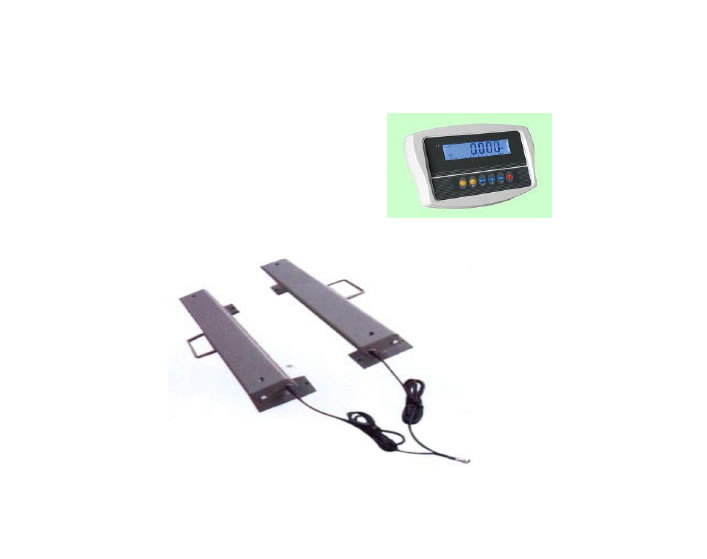

  ST-0601 - Portable WB weigh beams

Ideal to use under stock platforms, crates & wool presses
Dimensions:
60cm(L) x up to 2000kg
80cm(L) x up to 2000kg
1m(L) x up to 2000kg
1,2m(L) x up to 2000kg
● Side handles for ease of portability
● Powder coated construction






  ST-0602 - Livestock portable Platinum weigh bars
Weigh bar Specifications:

● Construction: Square tubing= 104mm (W)
● Industrial heavy duty 5mloadcellcables& connectors
● Fitted with 4x2ton loadcells
● Electro - plated (Galvanized optional)
● Height (including flat mounting plates) = 76mm
● Feet can be raw bolted onto a LEVEL concrete floor
● Tough construction, fully weatherproof-suitable for use in rain or sun
● Ideal to use under stock platforms, crates, crushes and wool presses
● Cables are sealed into weigh-bars to eliminate moisture, water, etc.
● Protected ends against foreign elements

Mounting dimensions for purpose of LIVESTOCK equipment:

● 60cmweigh-bar= 2 holes centre to centre =576mm;
● 80cmweigh-bar= 2holes centre to centre =776mm;
● 1mweigh-bar= 2 holes centre to centre= 976mm
● 1,2m weigh-bar = 2 holes centre to centre = 1176mm
● Width = 104mm (allow 110mm space if fitted inside a channel)
● Height = 76mm (NOT adjustable)
● Max capacity:2000kg x 0,5kgor 600kgx0,2kg
● PlatinumWeighbars-600-Standard-for sheep & goat
● PlatinumWeighbars-800or1m
● Standard weigh-bars for cattle and large pigs weighing


Indicator Specifications& Features:

● Animal Weighing function (stability)
● Accumulating
● Weight hold
● Pre-set Tare
● Power: 220 VAC
● Built-in rechargeable battery
● upto70hrs operation
● RS232output for printer or PC

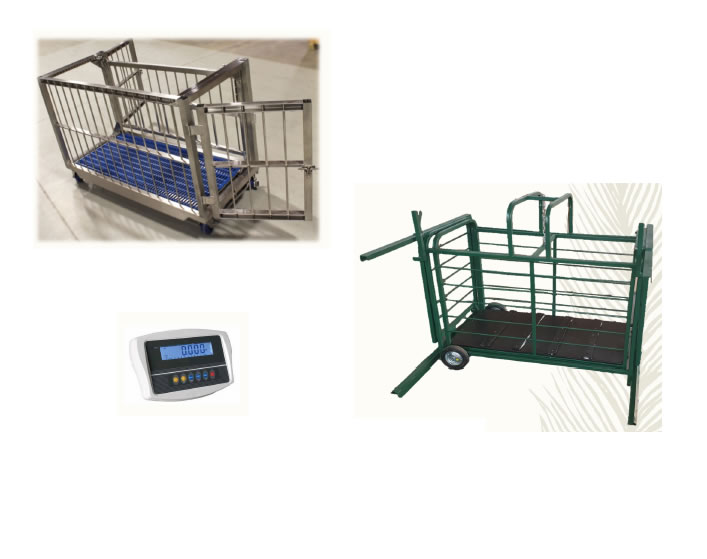

  ST-0603 - Sheep, goat & pig professional scale

Cage specifications:
■ Internal dimension: 1250(L) x 560(W) x 1m(H)
■ Capacity: 300kg x 100g or 600kg x 0,2kg
■ Finish: Galvanized for long lasting protection
■ Rigid platform with wheels for easy moving
■ 2 x Hindge sliding gates

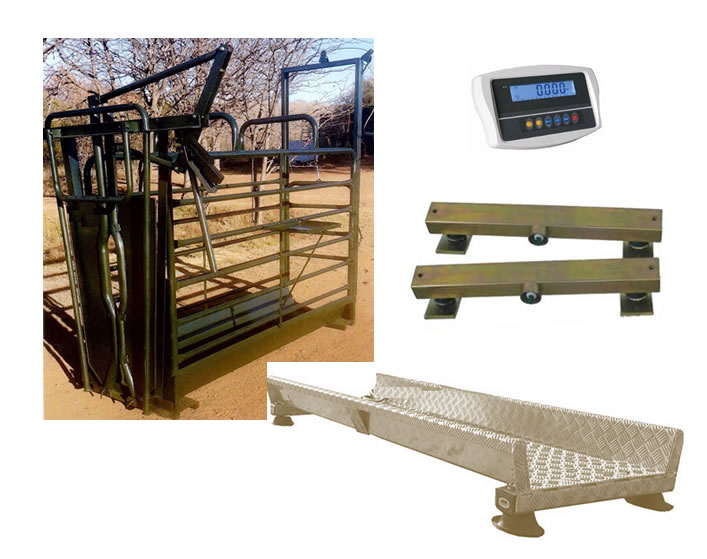

  ST-0604 - Cattle livestock scale - Crate with Gate & Neck clamp
Crate/crush specifications:
■ Designed with 1 x gate and 1 x neck clamp
■ Optional: with 2 x sided slide gate
■ Robust design
■ Actual weight of cage - 350kg
■ Dimensions: (W)0,7m bottom/1,1m top x (L)2,65m x (H)2m
■ Capacity: 2500kg x 0,5kg






  ST-0605 - Cattle Livestock Scale
Cattle crush specifications:

● Robust design
● With 1 x gate and 1 x neck clamp
● Actual weight of cage - 350kg
● Dimensions: (W)0,7m bottom/1,1m top x (L)2,65m x (H)2m
● Flat surface recommended with installation


V-shape side barrier top plate:

● Construction: Square tubing 76mm x 76mm
● Thick industrial loadcell cables & connectors
● Fitted with 4 x 2ton loadcells
● Electro plated (optional)
● Height (with feet) = +/-100mm
● Feet can be raw bolted onto a LEVEL concrete floor
● Tough construction, fully weather proof - suitable for use in rain or sun
● Heavy duty 5m cables
● Ideal to use under stock platforms, crates, crushes and wool presses
● Cables are sealed into weigh-bars to eliminate moisture
● Sealed ends - prevents against foreign elements

Indicator Specifications:

● 220V, 12V & 7.4V selectable Input
● Auction mode
● Live Filter Modes
● Individual weighing Mode
● Animal/Lock function
● Totalizer and consecutive number sequence
● Dual RS232 Ports: Average weight of Individual and Auction
● ASCII Printer RTC
● SCOREBOARD Printing Statistical/Auction details
● Dual Capacity
● Single User interface
● Dual Division
● Statistical value
● Made in South Africa

Platinum Series Weighbars:

● 60cm weigh-bar = 2 holes centre to centre = 545mm;
● 80cm weigh-bar = 2 holes centre to centre = 745mm;
● 1m weigh-bar = 2 holes centre to centre = 945mm
● Max capacity: 2000kg x 0,5kg
● Platinum 600 - Standard weigh-bars for sheep & goat
● Platinum 800 or 1m - Standard weigh-bars for cattle & large pigs weighing in South Africa







  ST-0606 - Portable Bluetooth Weigh-Bar (1.5ton) ( Including Smart Phone)
An exquisite and durable smart weighing tool:

The main body of the scale body is made of high-strength drawn aluminum, and after finishing and surface electrophoresis treatment, it has high strength and exquisite appearance;
The production process has fewer procedures, easy processing, easy quality control, simple assembly, and easy realization of mass standardized production and cost control.


● Dimensions ( Length, Width and Height) 80cm x8cm x 5.5cm
● Self Weight 5kg
● Built in Power supply 3.7v Lithium battery
● Maximum continuous working time 100hrs
● Exclusive Smart App (Including Smart Phone)
